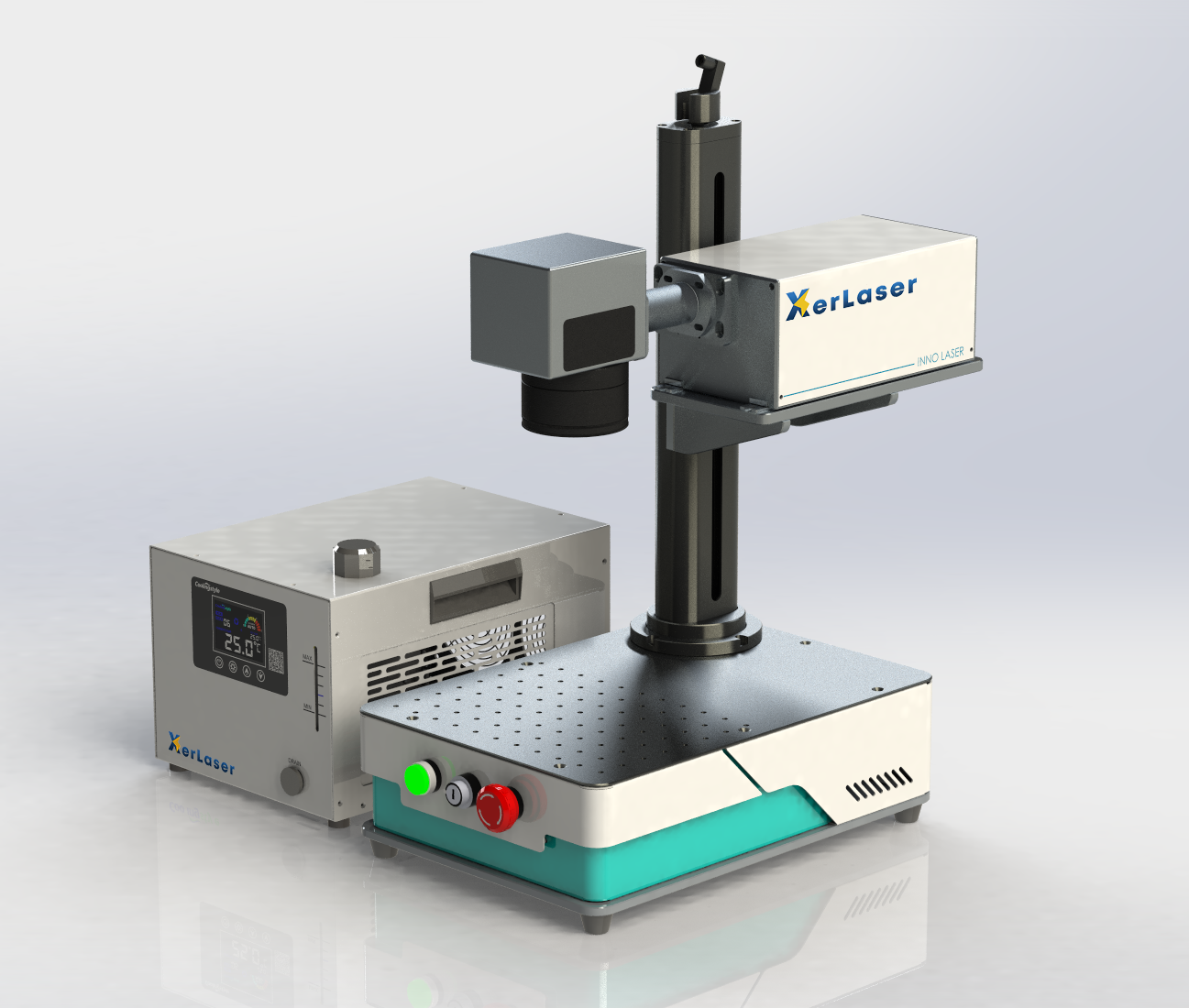

3W UV Laser Marking Machine

3W UV Laser Marking Machine

$7,999.99 USD
$7,999.99 USD $7,999.99 USD
Sale Sold out
Shipping calculated at checkout.
UV lasers at around 355nm wavelength are pretty much the best wavelength to mark on virtually all materials, requiring less power to produce a clear mark. It produces very little heat, which is important for marking special materials with superb precision.
View full details

Long-lasting laser source

The laser source from Inno-Laser can provide over 100,000 hours of run time, minimizing the machine's maintenance cost.

Red dot focus assistance

The two red laser pointers make focusing quick and intuitive.

Lightburn compatibility

Our motherboard is compatible with the latest Lightburn for Galvo.

Rotary Axis Port

Our machine is compatible with all the rotary axis that has a 4-pin connector.

Work Bed

Customers can secure a rotary axis or mark objects on our aluminum work bed.

Spec

  • Laser power: 3/5/10W
  • work area: 4.3" x 4.3" (110 x 110 mm)
  • Marking Speed: 1000mm/s
  • Laser Frequency: 10–200 kHz
  • Laser wavelength: 355nm
  • Pulse Width: <20ns
  • Power consumption: 1600W
  • Net Weight: 66.5 lbs

Compatible Materials

  • Acrylic
  • Hard Plastics
  • Brick
  • Granite
  • Marble
  • Tile
  • Wood
  • Glass
  • Crystal
  • Paper
  • Aluminum
  • Gold
  • Silver
  • Stainless Steel
  • Brass
  • Titanium
  • Tungsten
